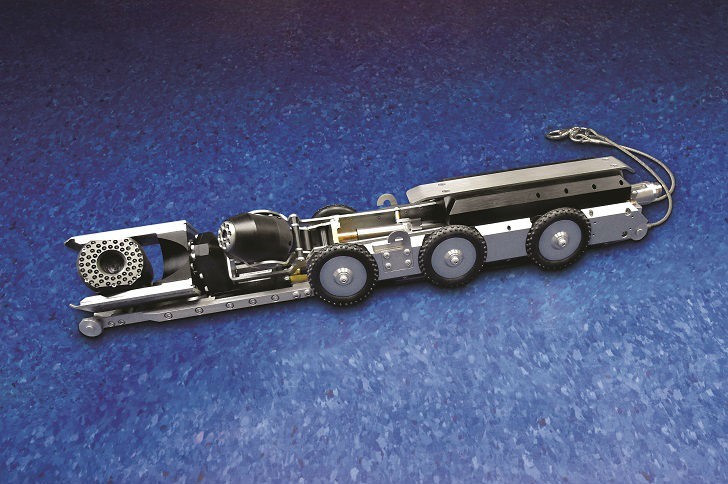

MAINLINE AND LATERAL LAUNCH SYSTEM

INSPECT MAINLINES AND LATERALS WITH GREATER EASE AND SPEED

Perform inspections in 6-inch to 24-inch pipelines from a single integrated unit. Locatable via a built-in 512 Hz sonde, the system features a colour pan and tilt mainline zoom camera, auto upright lateral camera, rear view camera and tilt-up connector. A launch camera actuator allows for easy insertion into 90-degree laterals and the dedicated 90-watt motor produces amazing pushing force for lateral inspections up to 100 feet from the mainline. The six-wheel drive tractor features three forward speeds, reverse and freewheel with speeds up to 70 feet per minute.

Also included in the system is a cable reel with 600 feet of cable (100 feet of push cable and 500 feet of 3/16-inch diameter armored Sincon cable) for easy manhole to manhole inspections. The 1500 series controller produces high-quality video to either a picture-in-picture system or a second video monitor for simultaneous camera views.

Company Info

  • RS Technical Services, Inc.

    1327 Clegg Street
    Petaluma , CA
    US , 94954

    Since 1984, R.S.Technical Services has been an innovative driving force in the CCTV pipeline inspection industry. We are a company of firsts: the first mainline color camera featuring internal lights, the first true pan and tilt camera with tracking lights, the first cable reels to offer electrical gear selection and a true freewheeling cable drum, the first steerable storm drain tractor for large diameter pipe inspection...and the list goes on and on.
