Cat 303E CR Mini Hydraulic Excavator

Designed For Optimum Performance in Confined Spaces

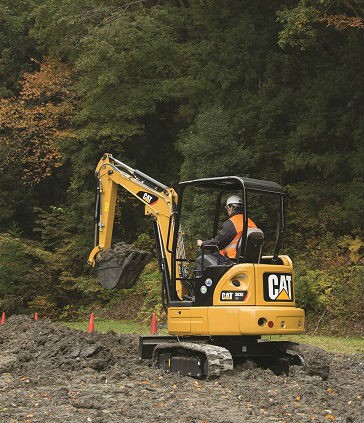

Cat 303E CR Mini Hydraulic Excavator

The Cat 303E CR mini hydraulic excavator, only 61 inches (1,550 mm) wide across the blade and having a compactradius design that limits tail swing to less than 5 inches (127 mm), is an easily transported machine that works efficiently and safely in small spaces and on congested job sites. With a maximum operating weight of 7,782 pounds (3,530 kg), the 303E CR expands the Cat mini excavator line and gives buyers more choice in the 2.5 to 3.5 metric ton size class. The 23.5-hp (17.5 kW) Cat C1.3 engine combines with a powerful load-sensing hydraulic system – delivering flows to 23.1 gpm (87.6 L/min) – to provide productive, reliable performance in demanding applications.

Available both in cab and canopy configurations, the 303E CR is designed for the operator’s convenience and safety. All operator stations, cab or canopy, are ROPS, TOPS, and Top Guard Level 1 certified, and the Cat interlock system, which prevents hydraulic movement when the safety bar is raised, adds further to operational safety.
