MegaMc is mega player in fusible pipeline construction

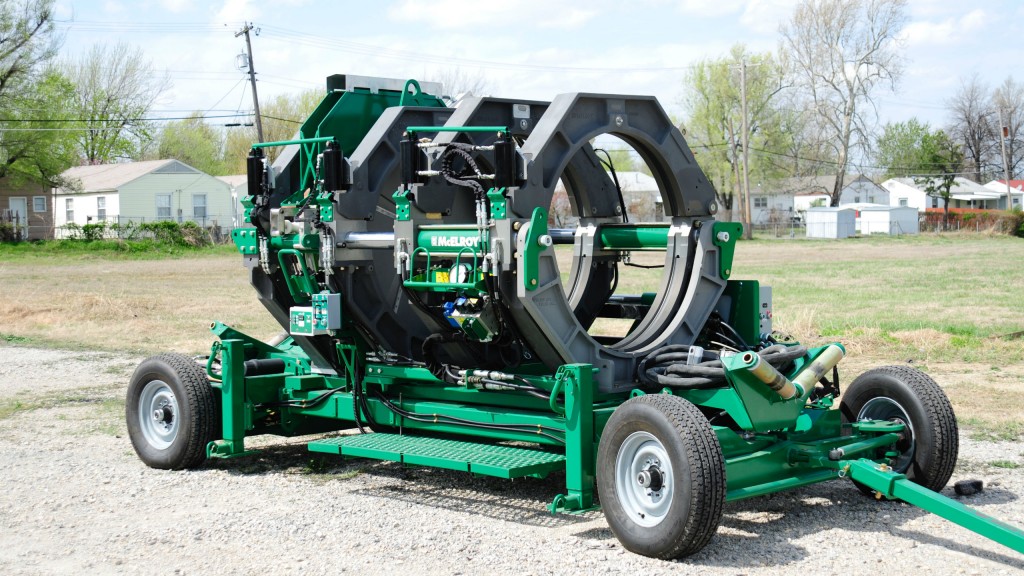

Versatility and power are the key components of McElroy’s new fusion machine, the MegaMc 1648 Series 2. The fusion carriage is mounted on a rugged wheeled chassis and is removable for in-ditch or close quarters work. The carriage can convert from 4 to 3 jaws as needed and interchanges easily with its tracked counterpart to create a self-propelled, all-terrain, track-mounted fusion machine.
“The MegaMc 1648 Series 2 is designed to function in the ditch, on the ground or on wheels which gives contractors the flexibility they need on any jobsite where large-diameter pipe (16” OD to 48” OD) is being fused,” said McElroy President Chip McElroy.
An electric-powered hydraulic system gives the Series 2 twice the amount of force capability to assist in all fusion functions, including the complete operation of the jaws, pipe lifts, heater and facer. The Series 2 allows for the butt fusion of most fittings without special holders or the removal of the outer jaw. Mitered inserts are available for fabricating ells.
To ensure work quality, the Series 2 is compatible with the DataLogger for documentation of the fusion process.
