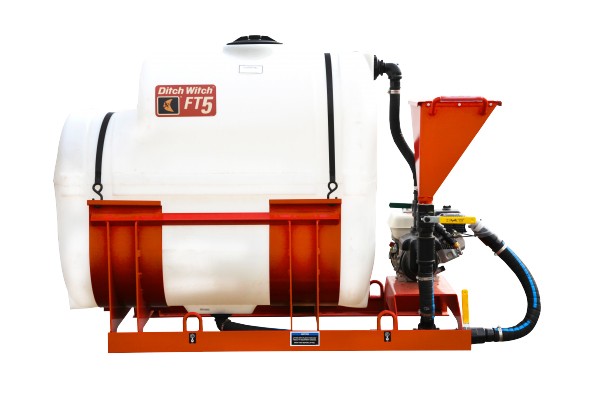

Ditch Witch - FT5 Jetting and Lubrication Pumps

The compact FT5 makes short work of the mixing process. Designed to support smaller HDD systems, the FT5 also supports your need to get the job done right and right on time.

Features & Benefits

Efficiency

The compact FT5 makes short work of the mixing process. Designed to support smaller HDD systems, the FT5 also supports your need to get the job done right and right on time.

Wet hopper

Venturi wet hopper allows excellent mixing of fluids; the hopper's steeper sides help speed up mixing cycles.

Narrow tank

Narrow tank can be positioned side-by-side with a drill unit on a trailer, making the equipment easy to transport to the jobsite.

Capacity

200-gallon (757-L) capacity is large enough to get the job done, and just the right size for transporting on small truck or trailer configurations.

Design

Simplicity of design and multiple configuration options accommodate a variety of setups.

Specs

Key Specifications
Weight, empty 402 lb (182 kg)
Weight, full of water 2,071 lb (939 kg)
Displacement 9.9 in3 (162 cm3)
Bore 2.7 in (69 mm)
Gross power @ 3,600 rpm 5.5 hp (4.1 kW)
Drilling fluid/mixing tank capacity 200 gal (760 L)
Maximum flow rate to drilling unit 18 gpm (68 l/min)
