General Pipe Cleaners - GenEye™ Sondes Utility Locators

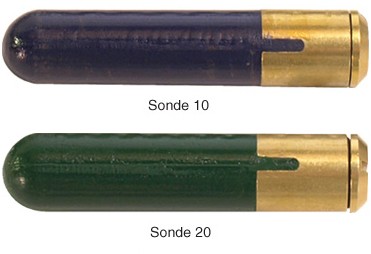

Gen-Eye Sondes are a great tool for pipe location in cast iron, clay, or plastic lines. Sondes are a far less expensive way of locating lines than video pipe inspection systems, and easier than pipe transmitters. Easier than locating an energized line, you simply locate the pinpoint frequency of the sonde. The compact sonde transmits at 512 Hz and is powered by a AAA battery. Locate the Sonde 10 at depths of up to 10 ft. in case iron pipe, or 15 ft. in clay or plastic; or locate the Sonde 20 at depths of up to 20 ft. in cast iron pipe, or 30 ft. in clay or plastic.

Specs

Key specifications
Sonde 10 Range (Green) Up to 10 ft. though cast iron or 15 ft. though clay or plastic lines
Sonde 20 Range (Blue) Up to 20 ft. though cast iron or 30 ft. though clay or plastic lines
Frequency 512 Hz.
Dimensions 3/4" x 3-1/2"
