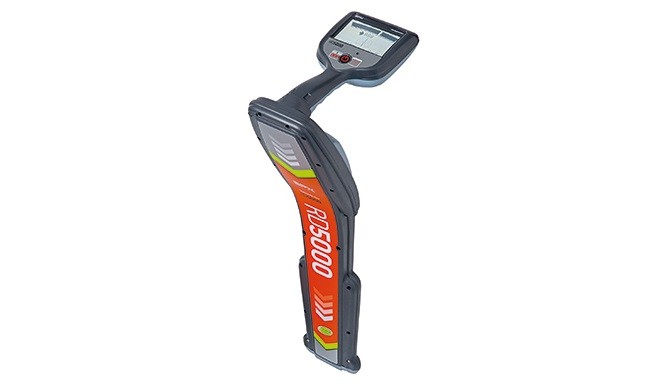

Radiodetection Ltd. - RD5000™WL Utility Locators

Designed with ease of use at its heart, the combination of RD5000™WL locator and RD5000WLT transmitter provides a single high frequency location kit which is particularly suited to the task of locating jointed water pipes, which pose a particular challenge due to isolating seals between sections. Locating specific pipes and cables in large underground networks is becoming increasingly complex. To address this, Radiodetection has developed ClearTRACK™ a powerful digital signal processing engine that automatically rejects signals that have bled onto adjacent conductors, leading to more accurate location of a target pipe or cable. Coupled with Dynamic Overload Protection, which disregards electrical interference (for example from high voltage cables), these features help to ensure that operators using the RD5000WL can confidently trace their target pipe or cable through the increasingly congested underground utility networks.

Specs

Key specifications
Maximum depth 6m* (20ft)
Frequency of sensitivity 83kHz (83,077Hz ±5Hz)
Depth accuracy ±5% ±0.01m (0.5”) from 0.1m (4”) to 3m (10ft)
Weight (Locator) 1.87kg (4lbs)
Weight (Transmitter) 1.6kg (3.5lbs)
