Greenlee / Textron Inc. - BLL-200 Utility Locators

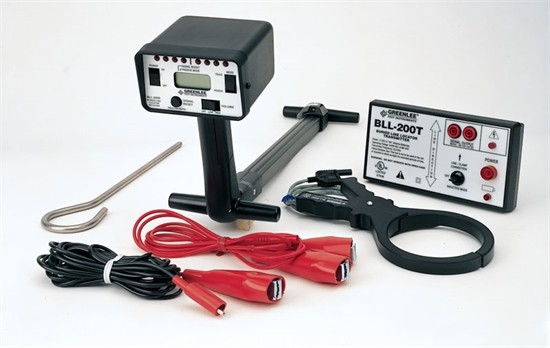

The Greenlee BLL-200 Buried Line Locator is a compact, lightweight kit consisting of two components—a transmitter and a receiver. The receiver can work alone for tracing buried current-carrying conductors, or with the transmitter for tracing other conductive objects.

Specs

Key specifications
Depth Range 0 - 15.000 FT Measures (Plus Or Minus 10 PCT Reading + 0.200 FT), 0 - 20.000 FT Traces (Plus Or Minus 10 PCT Reading + 0.200 FT) Receiver
Depth Resolution 0.100 FT Increments
Frequency 33.3 KHZ Transmitter
Passive Trace Frequency 12 HZ - 24 KHZ
Weight 15.000 OZ (425.000 GM) w/ Batteries And Clamp Transmitter
Weight 1.750 LB (794.000 GM) Receiver
