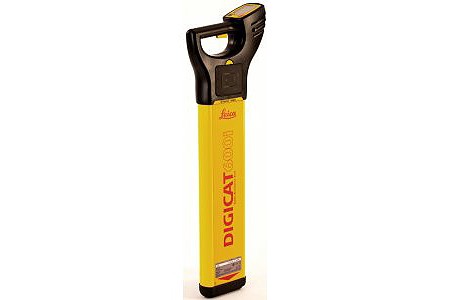

Leica Geosystems Inc. - Digicat 600i xf Utility Locators

The Leica Digicat 600i xf has all the functionality of the Digicat 500i xf with additional onboard memory and Bluetooth® connectivity. The onboard memory records information of how the Digicat 600i xf is used, this can then be uploaded by using the LOGiCAT software via Bluetooth® connectivity and additional analysis can identify operator trends, training requirements and how the locator was used following a near miss or utility strike.


Key specifications
Frequency / mode Power mode 50 Hz or 60 Hz, Radio mode 15 kHz to 60 kHz, Transmitter mode 8 kHz, 33 kHz, 512 Hz and 640 Hz, Auto mode = Power + Radio mode
Depth detection (typical) Power to 3m, Radio to 2m Transmitter mode – Dependant on transmitter or Sonde type
Weight 2.7kg including batteries
