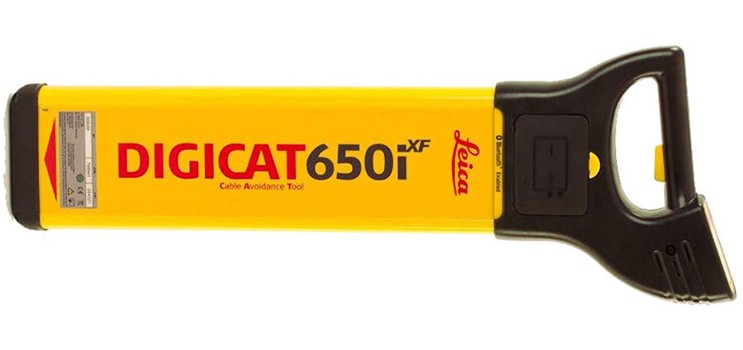

Leica Geosystems Inc. - Digicat 650i xf Utility Locators

he Leica Digicat 650i xf has the same functionality as the Digicat 600i xf, with the added benefit of depth estimation, when used in conjunction with the Leica Digitex 100t xf, 300t xf signal transmitters, Digimouse Standard Sonde or MAXiSONDE with a compatible 8kHz, 33kHz, 512Hz or 640Hz output.

Specs

Key specifications
Frequency / mode Power mode 50 Hz or 60 Hz, Radio mode 15 kHz to 60 kHz, Transmitter mode 8 kHz, 33 kHz, 512 Hz and 640 Hz, Auto mode = Power + Radio mode
Depth detection (typical) Power to 3m, Radio to 2m Transmitter mode – Dependant on transmitter or Sonde type
Weight 2.7kg including batteries
Depth estimation Line mode – 0.3 to 3m Sonde mode – 0.3 to 9.99m 10% of depth in line or Sonde mode
