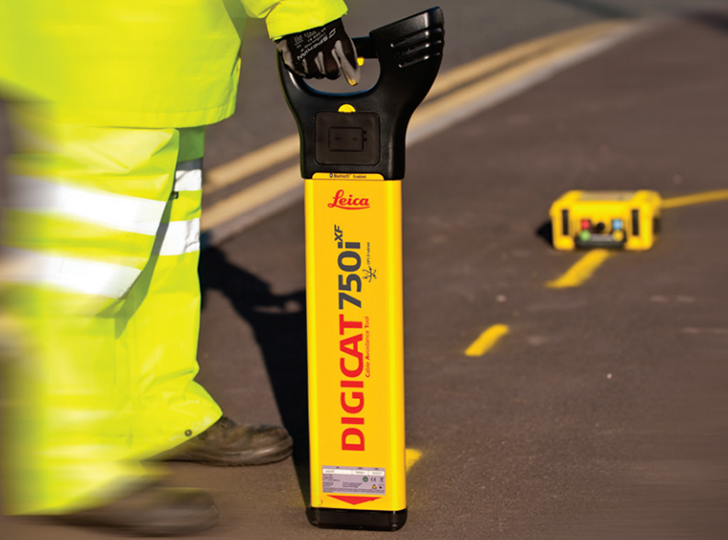

Leica Geosystems Inc. - Digicat 750i xf Utility Locators

The Leica Digicat 750i xf has all the functionality of the Digicat 650i xf with additional integrated GPS technology. This captures the data on where the locator has been used. The data is easy to download from the locator to your PC, tablet or mobile phone via Bluetooth® connectivity and using LOGiCAT software. The location information is then displayed visually on an easy to understand map, providing increased confidence in locating results because of greater traceability and visibility of use.

Specs

Key specifications
Frequency / mode Power mode 50 Hz or 60 Hz, Radio mode 15 kHz to 60 kHz, Transmitter mode 8 kHz, 33 kHz, 512 Hz and 640 Hz, Auto mode = Power + Radio mode
Depth detection (typical) Power to 3m, Radio to 2m Transmitter mode – Dependant on transmitter or Sonde type
Depth estimation Line mode – 0.3 to 3m Sonde mode – 0.3 to 9.99m 10% of depth in line or Sonde mode
Weight 2.7kg including batteries
