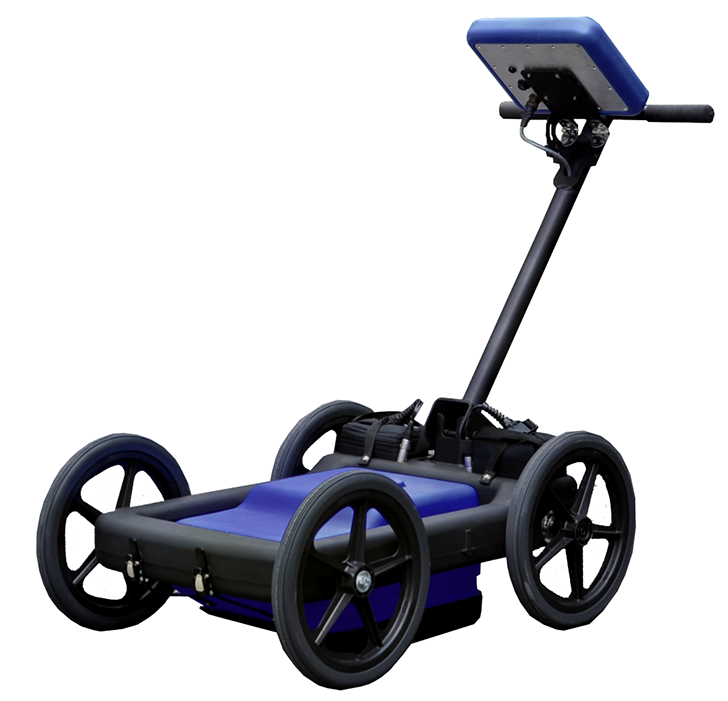

US Radar - Q25C Ground Penetrating Radar

The Q25C is a 250MHz locating system for deep utilities and Geotechnical applications.

Specs

Key specifications
Nominal Sampling Rate 550,000,000 samples per second
Maximum Sample Rate 100 Gigasamples/sec.
Sampling Interval 10 ps-6.4 ns (in 10ps increments)
Pulse Repetition Frequency 0.1-4 MHz-adjustable
Samples per Trace 2-8192, Adjustable
Receiver Direct RF Sampling
Transmitter Broadband, Available as 250 or 270 MHz Center Frequency
