MALÅ GroundExplorer (GX)

star_border View Full Profile
MALÅ GroundExplorer (GX) Ground Penetrating Radar

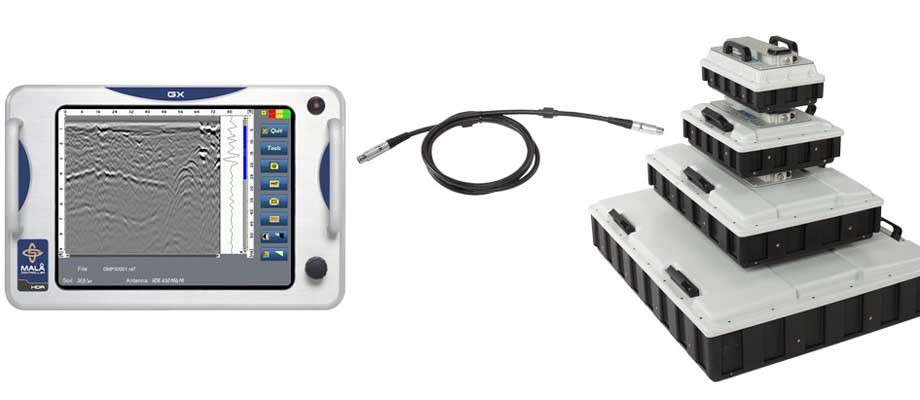

he MALÅ GroundExplorer (GX) is based on MALÅ´s innovative and patent-pending HDR technology and represent a leap forward in GPR technology. MALÅ GroundExplorer is an integrated GPR solution with four different MALÅ GroundExplorer antennas; the GX80, GX160, GX450 and the GX750. Every MALÅ GX solution contains two separate components, the GX Controller and the GX antenna, connected through a single cable.


Key specifications
Weight 3.2 kg
Processor 1.6GHz Intel Atom
Antenna: 80 MHz Weight: 24.6 kg Dimensions: 1010 x 780 x 220 mm
Antenna: 160 MHz Weight: 10.7 kg Dimensions: 720 x 480 x 190 mm
Antenna: 450 MHz Weight: 5.5 kg Dimensions:430 x 360 x 180 mm
Antenna: 750 MHz Weight: 3.6 kg Dimensions: 375 x 235 x 170 mm
