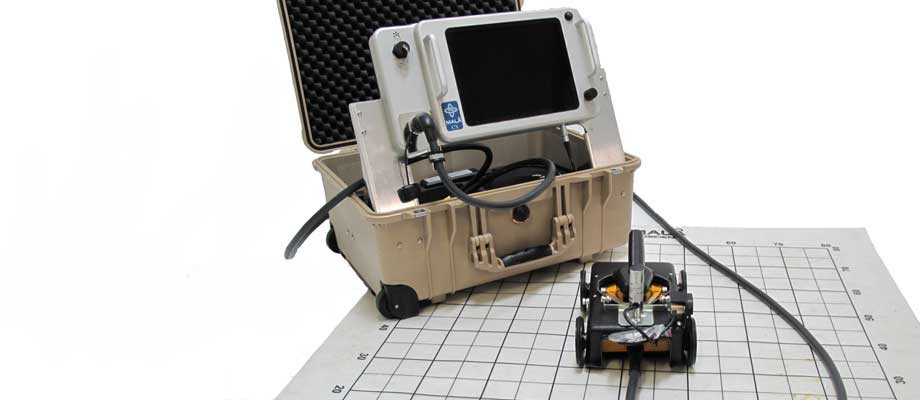

MALÅ GPR CX Ground Penetrating Radar

The MALÅ GPR CX Concrete Imaging System allows you to perform ground penetrating radar scans of concrete structure simply and safely and present data clearly for real-time and in-the-box 3D data acquisition, display and analysis.

The MALÅ GPR CX System provides accurate inspection of concrete structure such as floors, walls, slabs, bridge deck for the detection of metallic and non metallic objects and features, i.e. rebar, post tension cables, metallic/ non-metallic conduits and pipes, voids, as well as the measurement of slab thickness.

Specs

Key specifications
Pulse Repetition Frequency 100 kHz
Samplings frequency 6-700 GHz
Weight 3.5 kg
Operating time 6 hours
Antenna compatibility MALÅ High frequency series 1.2 GHz, 1.2 GHz EM, 1.6 GHz, 1.6 GHz EM, 2.3 GHz
