Geophysical Survey Systems, Inc. (GSSI) - UtilityScan® DF Ground Penetrating Radar

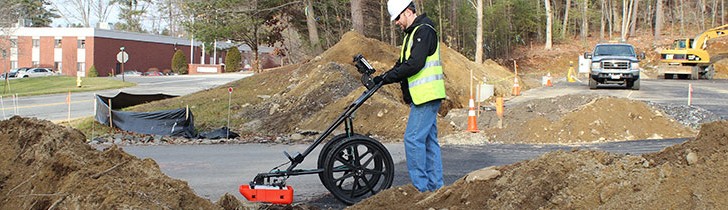

UtilityScan® DF is GSSI’s premium GPR unit for utility locating. It incorporates our innovative digital dual-frequency antenna (300 and 800 MHz) and an easy-to-use touchscreen interface to view shallow and deep targets simultaneously in a single scan. With an operation life of up to eight hours and a survey speed up to 10 km/h (6.25 mph), data collection is fast and efficient.

Specs

Key specifications
Weight 2.7 kg (6 lbs)
Scan rate 150 scans/sec at 512 samples/scan
Scan Intervals 50 or 100 scans/meter (15 or 30 scans/foot)
Depth ranges (High Frequency) 0.50 m, 0.75 m, 1 m, 2 m, 3 m
Depth ranges (Low Frequency) 1 m, 2 m, 3 m, 4 m, 5 m

Company Info

12 Industrial Way
Salem, NH
US, 03079

Website:
geophysical.com

Phone number:
603-893-1109
