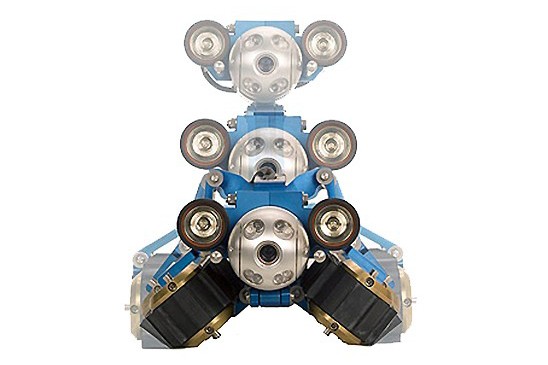

Inuktun Services Ltd. - Versatrax 150™ Inspection Crawlers

The Versatrax 150 is a modular, long range (1,500ft / 450m) internal pipe inspection system capable of operation within a variety of pipe sizes. The in-line chassis system is designed for operation in pipe with a minimum internal diameter of 6in / 150mm up to 12in / 300mm.

In the parallel configuration, the crawler is steerable and can operate in 12in / 300mm and larger pipe. The standard Spectrum 90 camera provides a high quality video image with pan, tilt and zoom capability

All Versatrax units are configurable for round pipe or flat surface operation. The vehicles are adjustable for a range of pipe diameters.

Specs

Key Specifications
Diameter min. 6in / 150mm
Depth Rating 100ft / 30m
Tether Cable 500ft / 160m (up to 1500ft / 457m optional)
Speed Up to 30ft / 9m per minute
Payload 200lb / 92kg
