LMK Technologies - LMT™ Saddle Pipe Liners

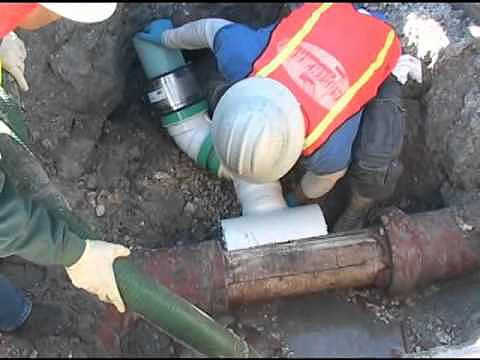

The LMT™ (Lined Main Tap™) Saddle is an engineered saddle designed to connect a lateral pipe to a mainline liner. The LMT™ saddle is sized to surround the pipe beyond it’s spring line, which creates a clamping effect that draws the saddle firmly on to the new main pipe-liner. LMK’s proprietary adhesive/sealant bonds the LMT™ saddle to the new main pipe-liner, providing a flexible non-leaking main/ lateral connection. The LMT™ Saddle is compatible with a variety of lining materials including polyethylene pipe commonly used in Fold & Form liners and pipe bursting, cured in place liners, and PVC folded liners.

Features & Benefits

Surgical Grade Stainless Steel Coupling

These couplings were designed specifically to fit the outer diameter of cured in-place pipe as well as new direct bury pipe. The stainless steel sleeve eliminates possible shifting that commonly results in offset joints.

Fits Multiple Lining Materials

The LMT™ Saddle can be applied to a variety of lining materials including polyethylene pipe commonly used in Fold & Form liners and pipe bursting, cured in place liners, and PVC folded liners.

Structural Connection

The LMT™ Saddle has a custom snap fit covering more than 50% of the new main pipe-liner. The LMT™ saddle is sized to surround the pipe beyond it’s spring line, creating a clamping effect that draws the saddle firmly to the new main pipe-liner.

Underwater Curing Flexible Adhesive / Sealant

LMK’s proprietary adhesive bonds the LMT™ saddle to the new main pipe-liner, providing a flexible non-leaking new main/lateral connection.
