Inuktun Services Ltd. - Delta Micro Inspection Crawlers

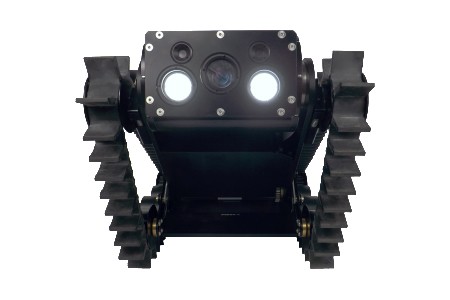

Submerged or on land, the Delta Micro Robot (formerly known as the VGTV, Variable Geometry Tracked Vehicle) is a miniature inspection and reconnaissance system. Primarily designed to access confined spaces and challenging terrain in a variety of applications, including search and rescue, duct inspection, culvert inspection and remote monitoring in nuclear environments.

Designed to excel in challenging environments the Delta Micro is exceptionally portable – the entire system can fit into a back pack and can be deployed and operated by a single person. Although small in size, the vehicle is capable of navigating through tight spaces, over objects and around obstacles due to its shape changing capabilities.

Specs

Key Specifications
Weight 14lbs / 6.2kg
Tether Cable 30m / 100' (up to 90m / 300' optional)
Speed Up to 16' / 5m per minute
Dimensions (lowered) 9"W x 17"L x 4.5"H (22 x 43 x 11cm)
Dimensions (raised) 9"W x 11"L x 12"H (22 x 20 x 30cm)

Company Info

2569 Kenworth Rd Suite C
Nanaimo, BC
CA, V9T 3M4

Website:
inuktun.com
