Ratech RCT-310

Inspection Crawler

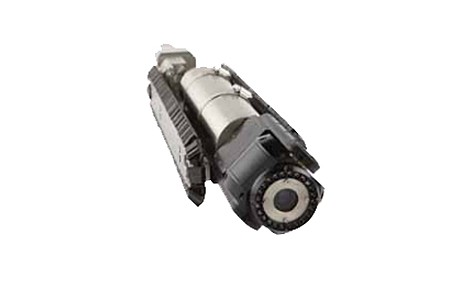

Ratech RCT-310

The Ratech RCT-310 Remote Camera Transporter© is a self-propelled multi conductor crawler. When used with any color or black and white inspection camera, it is capable of inspecting mainline sewers and pipes from 8" (200mm) to 30"+ (750mm) in diameter from a single entry point. Gone are the days when an inspection had to be aborted due to blockages, dead ends, single hole entry or excessive traffic areas.

The self-propelled crawler allows single hole entry to reach dead end lines and blockages where winch pulled cameras cannot reach. Manhole to manhole inspections are completed in less time by eliminating winch setup. The transporter’s dual tracks can quickly be widened to adapt to various pipes sizes. The powerful motor and angled tank-like treads to provide fulltraction on the curved pipe sides. It will overcome obstacles and make easy work of most lines.

VIEW PROFILE

Specs

Key Specifications
Overall length including motor 27.0"
Weight 35 lbs. (15 Kg) approx.
Variable Speed from 0-30 FPM (feet per minute)
Operating Voltage 0-90 Volts DC variable
Operating Current 0-2 Amps DC
Motor rating 1/8 HP 90 Volt DC
