CUES, Inc. - Pipe Ranger II Inspection Crawlers

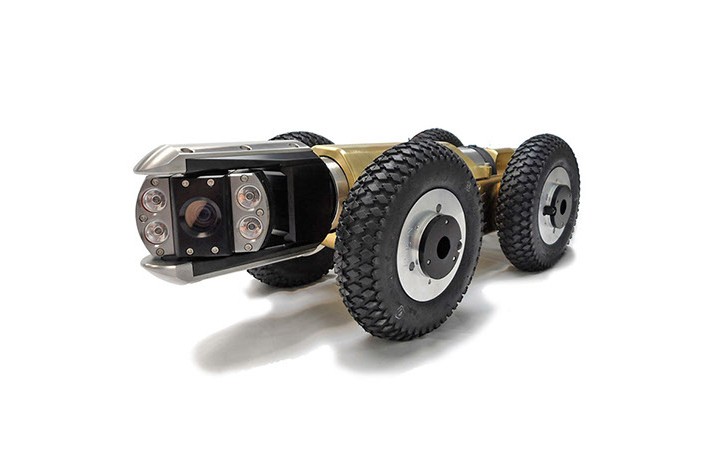

The Steerable Pipe Ranger II is a rugged and versatile robotic camera transporter designed to traverse silt, mud and debris commonly found in storm and sanitary sewers. The SPR II is designed with single-point wheel removal to facilitate speedy configuration changes for various pipe diameters and conditions.

The unit is designed to operate with all CUES inspection systems with up to 2000’ of single-conductor or multi-conductor cable to inspect 7” relined pipe through 72” diameter pipe. The unique built in two (2) speed transmission doubles the torque of the unit to produce maximum pulling power in large diameter pipe when the 10.5” diameter tires are installed.

Features & Benefits

Designed to provide clearance in a 7” diameter pipe; can inspect 8” relined pipe

Two-speed transmission doubles the torque and maximizes traction in larger diameter pipe or in difficult pipe conditions

Rear tip-up bulkhead connector minimizes strain on the cable connection during the inspection and retrieval

Wheels and spacers designed for the CUES Compact Steerable Pipe Ranger, LAMP II Lateral Launcher, and wheeled / tracked transporter can be used for the Steerable Pipe Ranger II without the need for modification

Operates with all CUES cameras: pan-and-tilt and optical zoom

Freewheel, powered reverse, forward variable speed control

Operates with the CUES Digital Side Scanning Camera (DUC)
