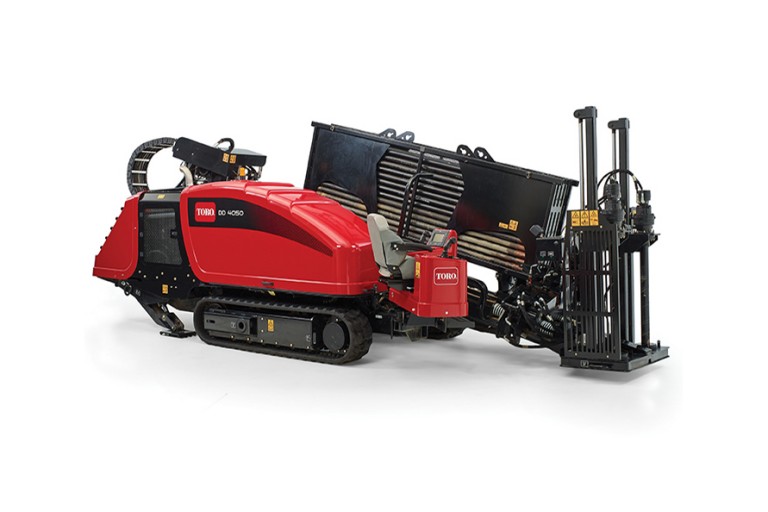

The Toro DD4050 provides the optimal ratio of thrust/pullback and torque performance to footprint - with a width of only 85", consistent 40,000 lb of thrust and pullback, and 5,000 ft-lb of rotation torque. Additionally, the newly designed drill operating system, TDOS-1, delivers single-screen drill performance information and intuitive navigation to enhance operator productivity.

Specs

Key Specifications
Weight 17,460 lbs (7,920 kg) without drill pipe
Gross Power Rating 160 hp (119 kW)
Torque 5,000 ft-lbs (6,101 N-m)
Thrust/Pullback Force 40,000 lbs (18 Tonnes)
Drill Pipe Outside Diameter 2.375" (61 mm)
Pipe Carrying Capacity 520' (159 m) (52 pieces)
