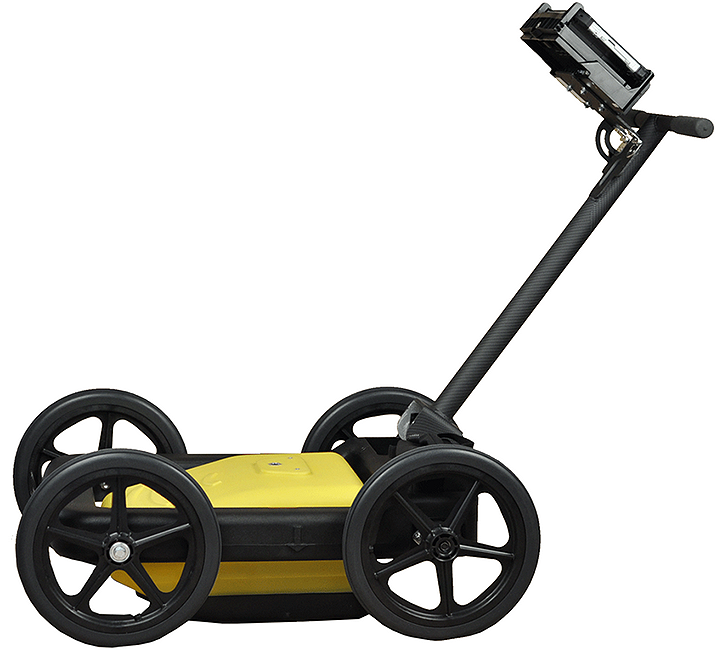

US Radar - Quantum Imager Ground Penetrating Radar

The triple frequency Quantum Imager by US Radar is capable of significantly greater depths with higher resolution than any other locating technology. Stepped Ultra Wideband Pulses combine the advantages of pulse radar and stepped frequency radar to offer unsurpassed resolution & depth. New Direct RF sampling technology creates clearer, easier to understand images than previously possible with older radar technologies. All these technologies work transparently behind the scenes to make locating easier.

Specs

Key specifications
Nominal Sampling Rate 550,000,000 samples per second
Maximum Sample Rate 100 Gigasamples/sec.
Sampling Interval 10 ps-6.4 ns (in 10ps increments)
Pulse Repetition Frequency 0.1-4 MHz-adjustable
Samples per Trace 2-8192, Adjustable
Transmitter Stepped Ultra Wideband Triple Frequency

Company Info

PO Box 313
Matawan, NJ
US, 07747

Website:
usradar.com
