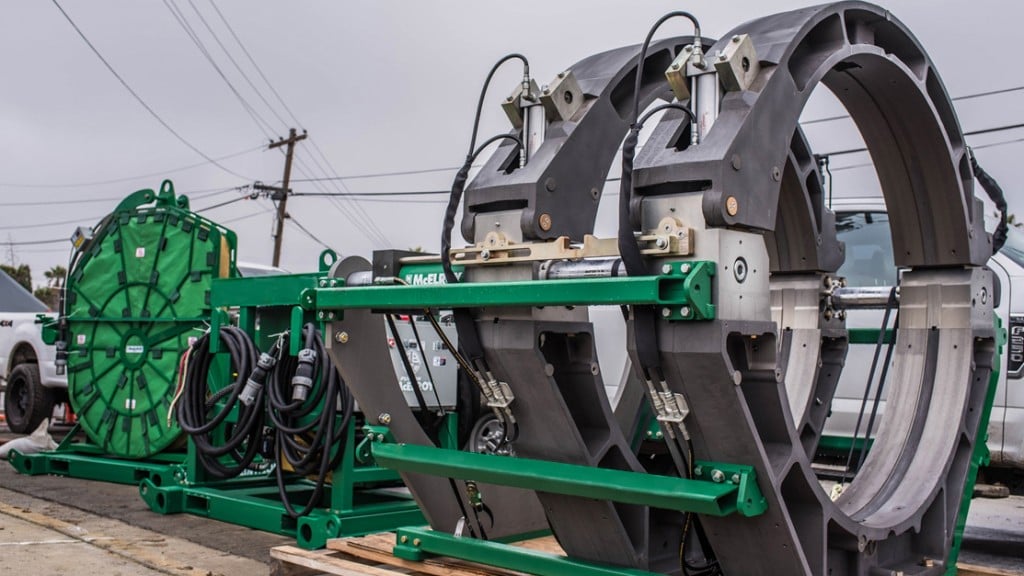

McElroy Manufacturing, Inc. - In-Ditch 1600 Pipe Fusion Machines

The In-Ditch 1600 brings butt fusion capability to jobs fusing large-diameter pipe, fitting and flanges in very tight work spaces. It was designed as an ideal machine for tie-in fusions and a cost-effective alternative to electrofusion, which requires the purchase of additional fittings.


Key Specifications
Length 73.00" (1,854mm)
Width 100.75" (2,559mm)
Height 83.50" (2,121mm)
System Pressure 3,000 PSI (206 BAR) Max.
Hydraulic Reservoir Capacity 35 Gallons (132.5 liters)
Carriage 4,960 lbs. (2,250 Kg)
Power Pack 2,780 lbs. (1,261 Kg)
Facer 1,250 lbs. (567 Kg)
Heater 750 lbs. (340 Kg)
